Softening Point

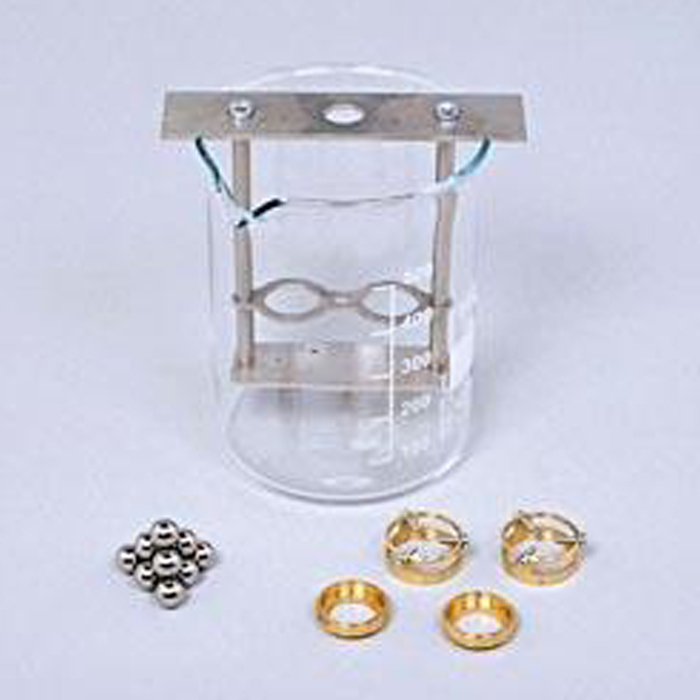

Ring & Ball Apparatus
IS 1205 1985, IP 58/63 & ASTM D 36
This apparatus is used to determine Softening point of Bitumen. It is that temperature at which a sample of bituminous material loaded by a 9.5mm dia steel ball, drops a specified distance when heated under specified conditions.
The apparatus consists of steel bracket with a sliding plate support. That support has two holes of 10mm dia on which a ring and ball guide can be kept. A central hole on this plate is for inserting thermometer. Supplied with a glass beaker approximate 600ml, high and a hand stirrer and 2 Nos. 9.5mm dia steel balls.
This apparatus is used to determine Softening point of Bitumen. It is that temperature at which a sample of bituminous material loaded by a 9.5mm dia steel ball, drops a specified distance when heated under specified conditions.
The apparatus consists of steel bracket with a sliding plate support. That support has two holes of 10mm dia on which a ring and ball guide can be kept. A central hole on this plate is for inserting thermometer. Supplied with a glass beaker approximate 600ml, high and a hand stirrer and 2 Nos. 9.5mm dia steel balls.

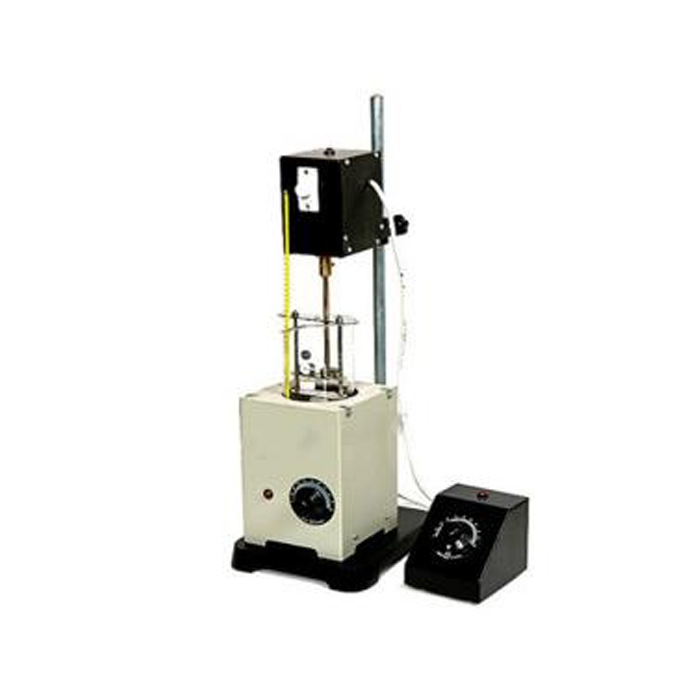

Ring & Ball Apparatus (Electrical)
ASTM D36, AASHTO T 53, BS 2000
Electrical heating, with a Heater and Energy Regulator, Suitable for operation on 230 V, 50Hz, Single Phase, A.C. supply. Each unit is supplied with bath of heat resistant glass and the following.
Electrical heating, with a Heater and Energy Regulator, Suitable for operation on 230 V, 50Hz, Single Phase, A.C. supply. Each unit is supplied with bath of heat resistant glass and the following.
- Tapered Rings - 2 Nos.
- Ball Centering Guide - 2 Nos.
- Steel Ball, of 9.5mm dia. - 2 Nos.
- Ring Holder - 1 No.
- Electric Heater (Hot Plate) - 1 No.
- Thermometer : IP 60° C
- Range : -2° C to 80° C
- Range : 30° C to 200°C

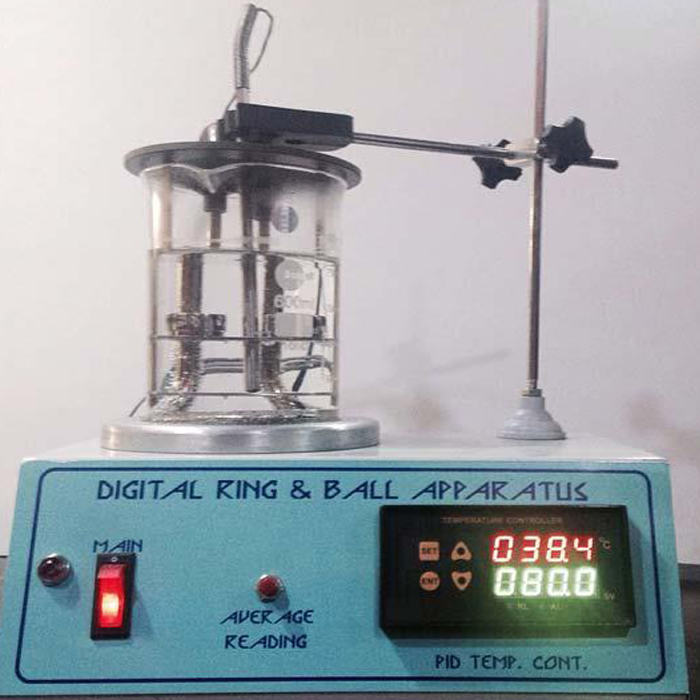

Ring & Ball Apparatus (Semi Automatic)
IS:1205, ASTM D 36, E 28, IP 198, IP 58, AASHTO T53, BS:2000, EN 1427
For determining the temperature at which a sample of bituminous material loaded by a 9.5 mm dia steel ball, drops a specified distance when heated under specified conditions. The new design of Ring and Ball Apparatus is compact user friendly and has better aesthetics. It has magnetic stirrer with heating facility and digital display of temperature, the heating can be adjusted through knob.
Suitable for operation on 220 V, 50 Hz, single phase, AC supply. Each unit is supplied with a bath of heat resistant glass and the following :
For determining the temperature at which a sample of bituminous material loaded by a 9.5 mm dia steel ball, drops a specified distance when heated under specified conditions. The new design of Ring and Ball Apparatus is compact user friendly and has better aesthetics. It has magnetic stirrer with heating facility and digital display of temperature, the heating can be adjusted through knob.
Suitable for operation on 220 V, 50 Hz, single phase, AC supply. Each unit is supplied with a bath of heat resistant glass and the following :
- Tapered Rings - 2 Nos.
- Ball Centering Guide - 2 Nos.
- Steel Balls of 9.5 mm dia - 2 Nos.
- Ring Holder - 1 No.
- Electric Heater (Hot Plate) - 1 Nos.
